VG70 ICU Ventilator

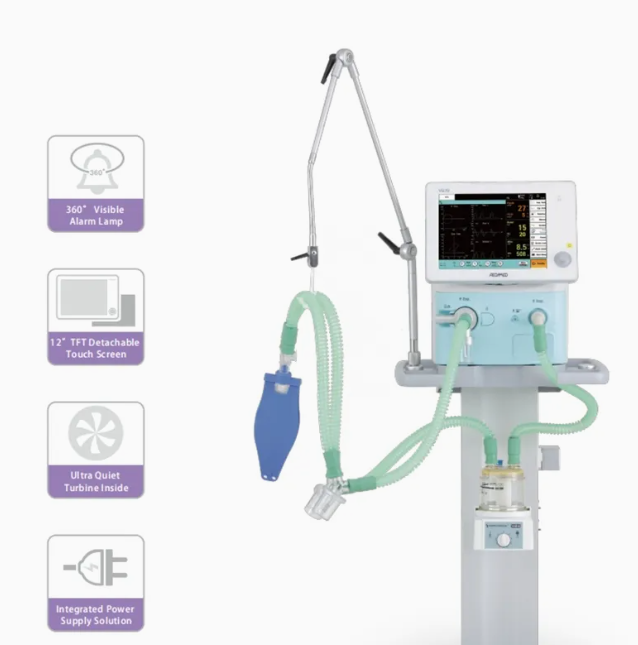

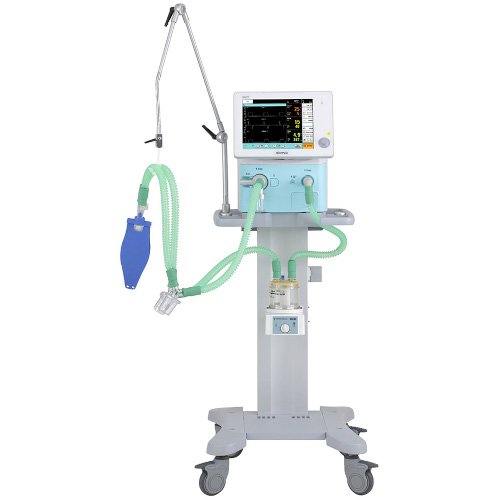

- This Aeonmed VG70 is an ICU ventilator that comes with a 12" TFT color touchscreen display, O2, 0.28-0.6 MPa supply gas, 20-2000 ml total volume, and FiO2, ETCO2 gas monitoring. Also, it includes upgradable USB ports ventilation software system that simplifies management more easily.
- Application: Adult -Pediatric (ICU-PICU)
Price
Call for Price
Contact us for latest pricing and bulk discounts.
Stable State Phase: PRVC and BIVENT ensure intelligent ventilation delivery by employing lung-protective strategies. Comprehensive lung mechanics monitoring includes time constant, PEEPi, compliance, and airway resistance. In addition, there are three waveforms and three loops with user-friendly displays that can provide continuous monitoring of the patient's condition
Weaning Phase: There are various ventilation modes to improve the weaning process, and the unique trigger and leak compensation mechanism protects the patient's breathing, ensuring smooth and comfortable breathing.
Management System: Upgradable ventilation system software with available USB ports that simplifies management and can provide pressure support to the patient when spontaneous breathing is present
Rehabilitation Phase: Besides providing patient data connectivity, the data export port monitors the hospital.
Weaning Phase: There are various ventilation modes to improve the weaning process, and the unique trigger and leak compensation mechanism protects the patient's breathing, ensuring smooth and comfortable breathing.
Management System: Upgradable ventilation system software with available USB ports that simplifies management and can provide pressure support to the patient when spontaneous breathing is present
Rehabilitation Phase: Besides providing patient data connectivity, the data export port monitors the hospital.
| Technical Specs | |
| Ventilation Modes | |
| VCV(A/C) | |
| PCV(A/C) | |
| PRVC | |
| SIMV(VCV)+PSV | |
| SIMV(PCV)+PSV | |
| SIMV(PRVC)+PSV | |
| SPONT/CPAP+PSV | |
| BIVENT+PSV | |
| NIV/CPAP | |
| NIV-T | |
| NIV-S/T | |
| Parameters | |
| • Tidal Volume | 20~2000 ml |
| • Respiration Rate | 1~80 bpm |
| • Tinsp | 0.2~9 s |
| • Tslope | 0~2 s |
| • Tpause | 0~4 s |
| • I | E Ratio: 1:10~4:1 |
| • FiO2 | 21%~100% |
| • Trigger Sensitivity | Pressure (-20~0 cmH2O, above PEEP) Flow (0.5~20 LPM) |
| • PEEP | 0~35 cmH2O |
| • Psupport | 0~70 cmH2O |
| • Pinsp | 5~70 cmH2O |
| Special Procedures | |
| Apnea Ventilation | |
| Smart Suction | |
| Manual Breath | |
| Insp/ Exp Hold | |
| ETCO2 Measurement | |
| Nebulization | |
| Waveform Freeze | |
| Monitoring | |
| • Pressure Value | Ppeak, Pplat, Pmean, Pmin, PEEP |
| • Volume / Flow Value | Vti, Vte, MV, MVspont |
| • Time Value | ftotal, fspont, I:E |
| • Real Time Curves | Pressure-Time, Flow-Time, Volume-Time waveforms, Pressure-Volume, Volume-Flow, Flow-Pressure loops |
| • Gas Monitoring | FiO2, ETCO2 |
| • Calculated Values | Compliance(C), Resistance(R), MVleak, RSBI, WOB, PEEPi |
