NICU, PICU, SCANU Solution
Infusion Pump Hawkmed

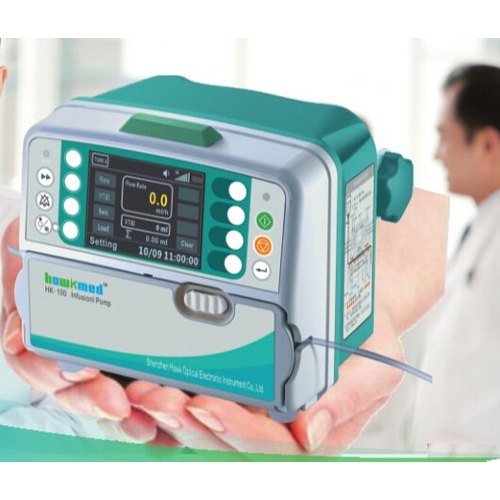

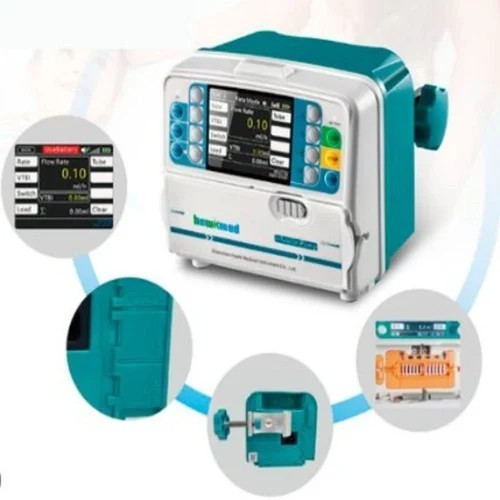

- HK-100II Infusion Pump
- The HK-100II is a compact, accurate, and safety focused infusion pump designed for clinical environments. It supports multiple infusion modes, advanced alarm management, and incorporates anti free flow protection for enhanced patient safety.
- Accessories and consumables, including compatible infusion sets, are available from most infusion set manufacturers. The system is designed to maintain compatibility with most major infusion-set brands.
Price
Call for Price
Contact us for latest pricing and bulk discounts.
Specifications HK-100II Infusion Pump:
Infusion Mode:
Infusion Modes: Rate, Drip, Time, Weight, Dose, TPN, Program, Intermittent, Micro, Sequential, Drug Library.
Infusion Performance
Applicable Infusion Set: Standard infusion sets
Accuracy: ±5%
Infusion Rate: 0.10–1200 mL/h
VTBI: 0–9999.99 mL
Volume Infused: 0–36,000 mL
KVO Rate: 0.1–10.0 mL/h
Bolus & Purge Rate: 0.10–1200 mL/h
Safety:
Bubble Detection: 50–300 mL (4 levels)
Occlusion Pressure: 13 levels
Alarms: Low battery, occlusion, door open, near empty, malfunction, etc.
Power & Battery:
AC 100–240V, 50/60Hz; DC 12V ±1.2V
Li Polymer 7.4V 1900mAh
Power Consumption: 35 VA
Physical Parameters:
Size: 145 × 120 × 100 mm
Weight: 1.4 kg
Waterproof Rating: IP24
Environmental Conditions
Operating Temperature: 5–40°C
Storage Temperature: -20–+55°C
Humidity: 10–95%
Infusion Mode:
Infusion Modes: Rate, Drip, Time, Weight, Dose, TPN, Program, Intermittent, Micro, Sequential, Drug Library.
Infusion Performance
Applicable Infusion Set: Standard infusion sets
Accuracy: ±5%
Infusion Rate: 0.10–1200 mL/h
VTBI: 0–9999.99 mL
Volume Infused: 0–36,000 mL
KVO Rate: 0.1–10.0 mL/h
Bolus & Purge Rate: 0.10–1200 mL/h
Safety:
Bubble Detection: 50–300 mL (4 levels)
Occlusion Pressure: 13 levels
Alarms: Low battery, occlusion, door open, near empty, malfunction, etc.
Power & Battery:
AC 100–240V, 50/60Hz; DC 12V ±1.2V
Li Polymer 7.4V 1900mAh
Power Consumption: 35 VA
Physical Parameters:
Size: 145 × 120 × 100 mm
Weight: 1.4 kg
Waterproof Rating: IP24
Environmental Conditions
Operating Temperature: 5–40°C
Storage Temperature: -20–+55°C
Humidity: 10–95%
