12 Channel ECG Machine

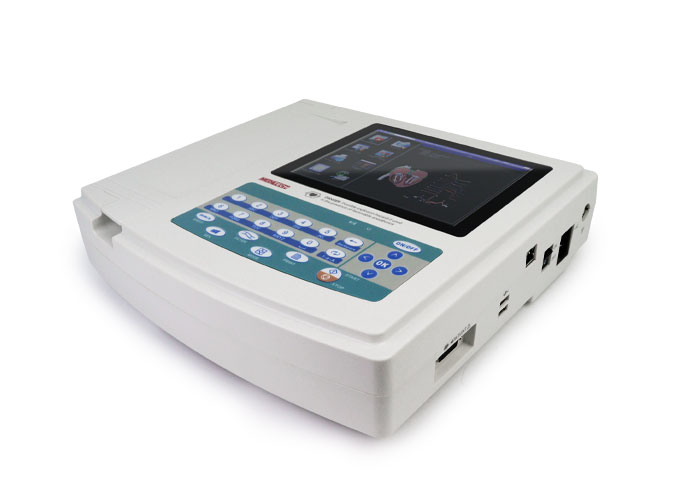

- EKG1212T ECG machine with 8 inch Touch and color screen,Multi-language report formats
- 12-lead ECG machine, has large capacity (10 000 testing),
- 12 leads ECG simultaneous acquisition, digital signal processor,
- Built-in battery and AC /DC power supply
- Digital isolation technology and signal processing solution, digital filter,Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Price
Call for Price
Contact us for latest pricing and bulk discounts.
8 inch color touch screen displays work status and control settings
Touch keyboard (patient name, age, gender...)
Printout of multilingual report formats (thermal paper printing)
Manual freezing etc. with simultaneous acquisition of 12 ECG leads
Digital signal processor to improve the quality of ECG waveforms with AC filter,
baseline filter and EMG filter for ECG signals
Measurement and interpretation function
Automatic reset (baseline) for most available data sets

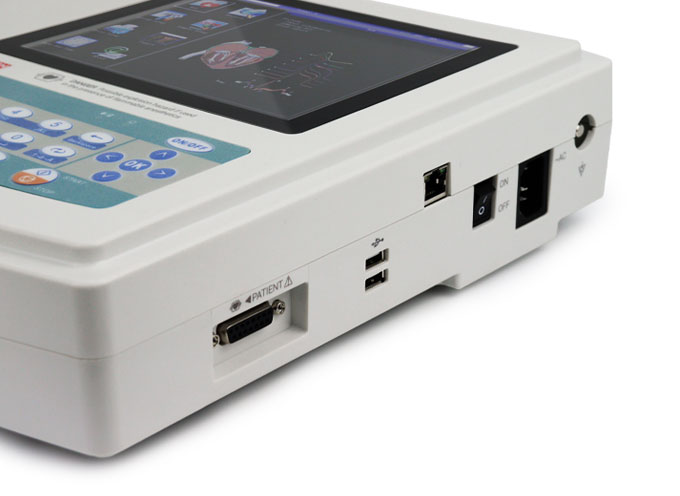

Internal rechargeable lithium ion battery, USB interface (standard), LAN jack (option)
Large capacity built-in memory to store more than 10,000 cases
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p-R interval, P duration, QRS duration, T duration, Q T interval.
Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1)
Sensitivity selection: 2,5,5,10,20 ,40 mm/mv, 5 options, error: ±5%. Standard sensitivity is 10mm/mV±0.2mm/mV
Multilingual, comes with CardioSoft pro PC software for data transfer (save, review, print a report)
Analysis of FCG, HFCG, QTD and HRV elements
Multiple languages
PC software CardioSoft pro for data transfer (save, review, print a report)
Touch keyboard (patient name, age, gender...)
Printout of multilingual report formats (thermal paper printing)
Manual freezing etc. with simultaneous acquisition of 12 ECG leads
Digital signal processor to improve the quality of ECG waveforms with AC filter,
baseline filter and EMG filter for ECG signals
Measurement and interpretation function
Automatic reset (baseline) for most available data sets
Internal rechargeable lithium ion battery, USB interface (standard), LAN jack (option)
Large capacity built-in memory to store more than 10,000 cases
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p-R interval, P duration, QRS duration, T duration, Q T interval.
Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1)
Sensitivity selection: 2,5,5,10,20 ,40 mm/mv, 5 options, error: ±5%. Standard sensitivity is 10mm/mV±0.2mm/mV
Multilingual, comes with CardioSoft pro PC software for data transfer (save, review, print a report)
Analysis of FCG, HFCG, QTD and HRV elements
Multiple languages
PC software CardioSoft pro for data transfer (save, review, print a report)
| Leads | Standard 12 Lieads |
| Patient leakage current | < 10μA |
| Input impedance | ≥5MΩ |
| Frequency response | 1Hz~75Hz |
| Time constant | Time constant > 3.2s |
| CMRR | ＞60dB |
| EMG noise filter | 25/35Hz(-3dB) |

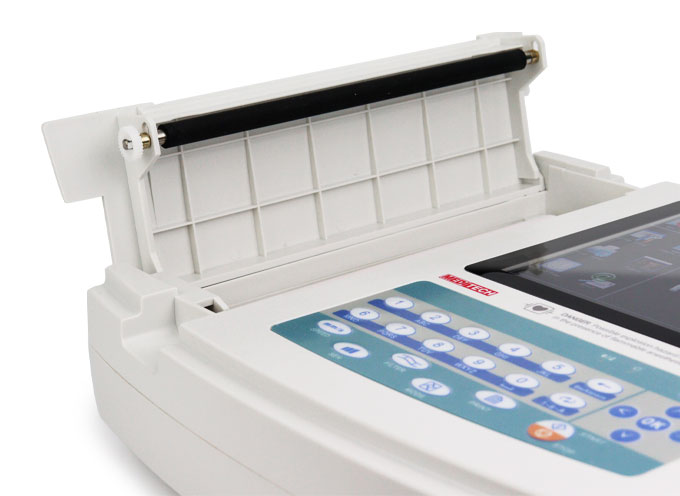

| Recording method | thermal array printing system |
| Recording paper specification | |
| Paper speed | |
| Automatic recording | 25mm/s 50mm/s Error:±5% |
| Rhythmic recording | 25mm/s 50mm/s Error:±5% |
| Manual recording | 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%. |
| Sensitivity selection | 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV. |
| Automatic recording | set up recording according to recording format and automatic mode with automatic change of line measurement and analysis. |
| Manual recording | set up recording according to recording format with manual change of measurement lines. |
| Measurement parameters | HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1) |
| Product safety type | class I type CF Defibrillation safe applied part. |
| Continuous polarization voltage | ±300mV |
| Noise level | ≤15μVp-p |
| Fuse specification | 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply) |
| Operation | |
| a) Ambient temperature | +5℃~+35℃ |
| b) Relative humidity | ≤80% |
| c) Power supply | AC:100~240V50/60Hz |
| DC | 7.4V 3700 mAh rechargeable lithium battery |
| d) Atmospheric pressure | 86kPa~106kPa |
| Transportation and storage | |
| a) Ambient temperature | -10℃~55℃ |
| b) Relative humidity | ≤95% |
| c) Atmospheric pressure | 50kPa~106kPa |
| Input type | floating and defibrillation protection |
